恒捷供应链
加入对比
预览规格书|
1 + |
￥ 98.968034 |
|
|
5 + |
￥ 94.29973 |
|
|
10 + |
￥ 90.565088 |
|
|
20 + |
￥ 87.764105 |
|
|
1 + |
＄ 12.5769 |
|
|
5 + |
＄ 11.98365 |
|
|
10 + |
＄ 11.50905 |
|
|
20 + |
|
＄ 11.1531 |
|
（人民币单价(含13%税)） |
||
起订量 1 / 递增量 1
| 参数 | 数值 |
|---|---|
|
Country Of Origins
|
China， Swaziland
|
|
Lifecyle
|
Active
|
|
EU RoHS
|
Compliant
|
|
EU RoHS Version
|
2011/65/EU, 2015/863
|
|
Part Number Code
|
View Code
|
|
Description
|

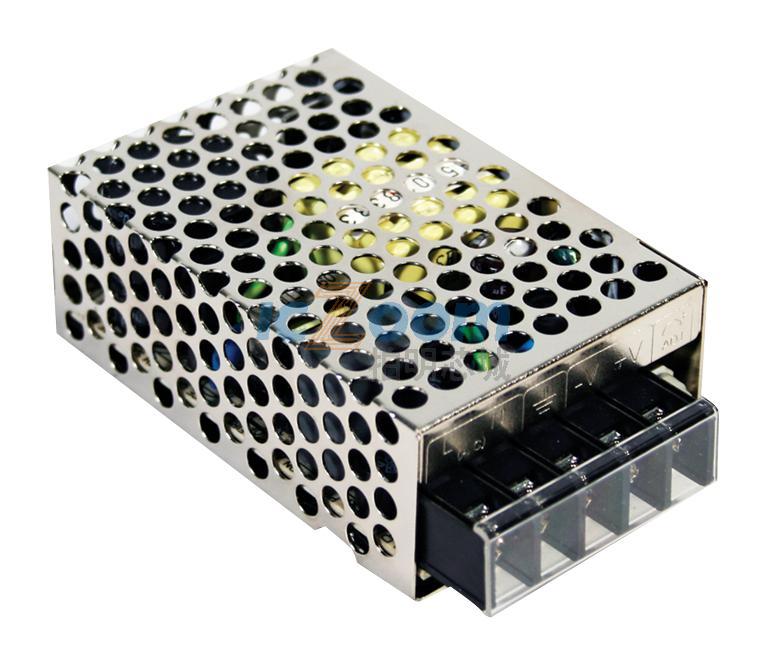

AC/DC Power Supply Single-OUT 24V 1.1A 25W 5-Pin
|
|
Taxonomy
|
Batteries and Power Supplies > Power Supplies > AC to DC Power Supplies
|
|
Introduction Date
|
2004-08-16 00
|
|
ECCN
|
EAR99
|
|
Supplier Cage Code
|
S8116
|
|
Package Width
|
51
|
|
HTS
|
8504.40.95.20
|
|
Output Current (A)
|
1.1
|
|
Output Type
|
Fixed
|
|
PCB changed
|
5
|
|
Minimum Isolation Voltage
|
3000VAC
|
|
Ripple & Noise
|
120mV(Max)
|
|
Output Power (W)
|
25
|
|
Minimum AC Input Voltage (V)
|
88
|
|
Number of Outputs
|
1
|
|
Maximum Operating Temperature ...
|
70
|
|
Configurable
|
No
|
|
Medical
|
No
|
|
Tolerance (%)
|
±1
|
|
Mounting
|
Chassis
|
|
Pin Count
|
5
|
|
Maximum DC Input Voltage (V)
|
373
|
|
Output Connector Type
|
Screw Terminal Block
|
|
Style
|
Enclosed
|
|
Package Height
|
28
|
|
Line Regulation
|
0.5%
|
|
Package Length
|
79 + 14(Max)
|
|
Part Status
|
Active
|
|
Efficiency (%)
|
86(Typ)
|
|
Minimum Operating Temperature ...
|
-20
|
|
Product Weight (g)
|
200
|
|
Minimum DC Input Voltage (V)
|
125
|
|
Power Indicator
|
Yes
|
|
Maximum AC Input Voltage (V)
|
264
|
|
Maximum Input Current (A)
|
0.7(Typ)
|
|
Load Regulation
|
0.5%
|
|
Input Connector Type
|
Screw Terminal Block
|
|
Input Frequency (Hz)
|
47 to 63
|
|
Output Voltage (V)
|
24
|
|
Input/Output Type
|
AC/DC
|
|
ECCN (US)
|
EAR99
|
|
Type
|
Switching
|
|
Voltage - Output 1
|
24V
|
|
Voltage - Output 2
|
-
|
|
Mounting Type
|
Chassis Mount
|
|
Operating Temperature
|
-20°C ~ 70°C (With Derating)
|
|
Lead Free Status / RoHS Status
|
Lead free / ROHS3 Compliant
|
|
Applications
|
ITE (Commercial)
|
|
Series
|
RS-25 (25W)
|
|
Voltage - Output 3
|
-
|
|
Power (Watts)
|
26W
|
|
Categories
|
Power Supplies - External/Internal (Off-Board) AC DC Converters
|
|
Manufacturer
|
MEAN WELL USA Inc.
|
|
Approvals
|
CB, CCC, CE, cURus, TUV
|
|
Current - Output (Max)
|
1.1A
|
|
Size / Dimension
|
3.07 L x 2.01 W x 1.10 H (78.0mm x 51.0mm x 28.0mm)
|
|
Minimum Load Required
|
No
|
|
Efficiency
|
86%
|
|
Features
|
Adjustable Output, Universal Input
|
|
Moisture Sensitivity Level (MS...
|
1(Unlimited)
|
|
Voltage - Output 4
|
-
|
|
Voltage - Isolation
|
3kV
|
|
Voltage - Input
|
88 ~ 264 VAC, 125 ~ 373 VDC
|
